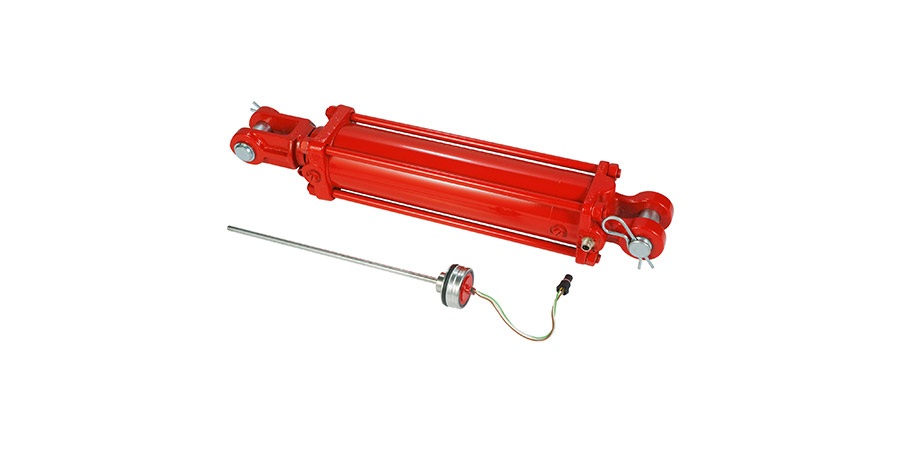

Position Sensing Hydraulic Cylinder, PDH series Cross Manufacturing Product Line

Posted on December 21, 2022

News And Events Pdh Series

Hydraulic Cylinder Position Sensor components (except for electrical connector) are embedded internally within the cylinder for superior durability and long field life.

Sensor:

  • Non-Contact and Absolute Measurement
  • Output Options:
    • Analog: Voltage or Current
    • Digital: J1939, CANopen or PWM
  • Sensor Voltage Supply: 12/24 VDC
    • Optional 5 VDC input (4.5 VDC output only)

Sample Applications:

  • Leveling Jacks
  • Marine Steering
  • Snow Plow Blade Control
  • Trash Truck Automation
  • Loader Bucket Angle & Height
  • Paver Height
  • 3 Point Hitch Position
  • Steering Control

Rated to 3000 PSI—2" through 5" Bore Sizes
