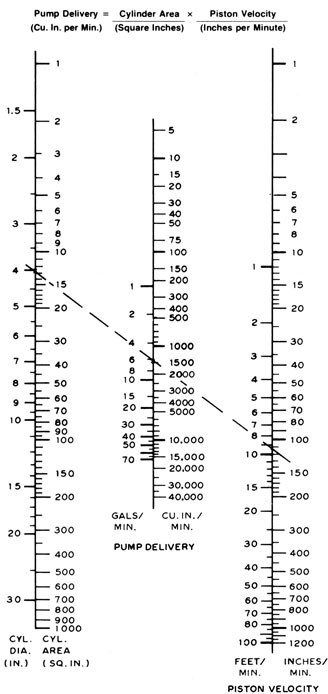

Technical And Terminology Helpful Nomographs Cylinder Speed

Cylinder Speed

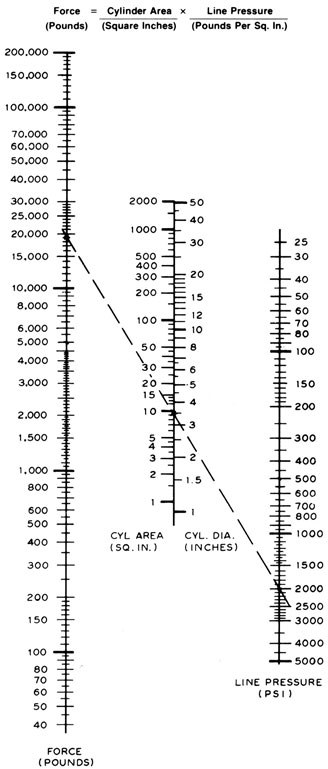

Technical And Terminology Helpful Nomographs Cylinder Force

Cylinder Force

Technical And Terminology Helpful Nomographs Cylinder Force

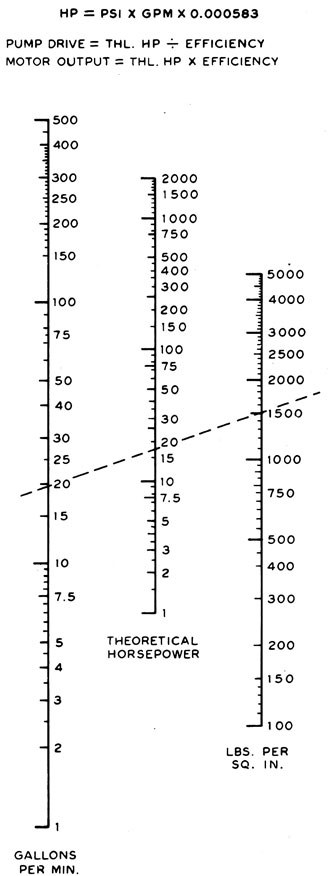

Technical And Terminology Helpful Nomographs Pump And Motor Horsepower

Pump & Motor Horsepower

Technical And Terminology Helpful Nomographs Pipeflow Capacity

Pipeflow Capacity

Technical And Terminology Helpful Nomographs Pipeflow Capacity

Technical And Terminology Helpful Nomographs Hydraulics Motor Torque

Hydraulic Motor Torque

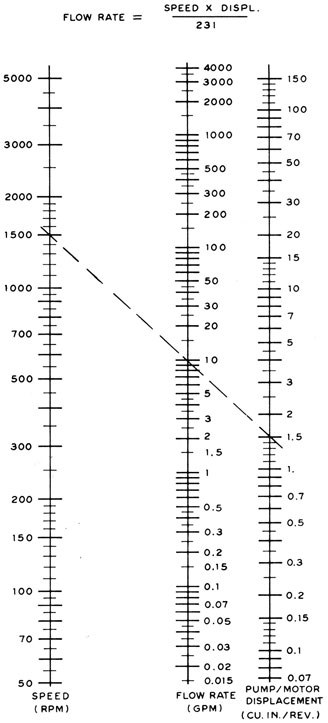

Technical And Terminology Helpful Nomographs Hydraulics Motor Speed

Hydraulic Motor Speed

Technical And Terminology Helpful Nomographs Hydraulics Motor Speed
